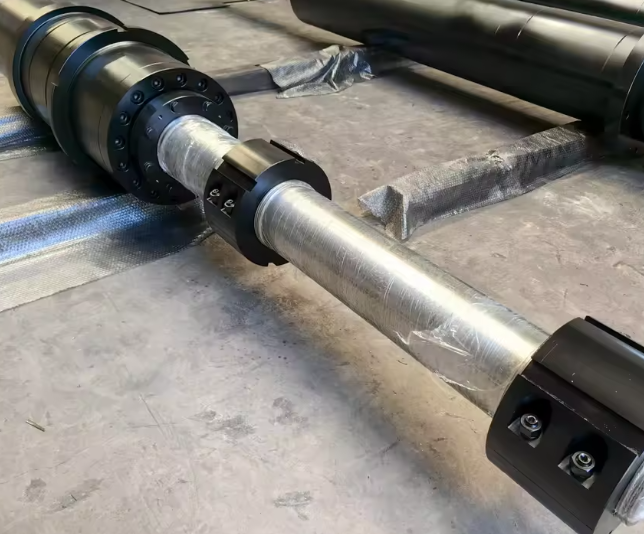

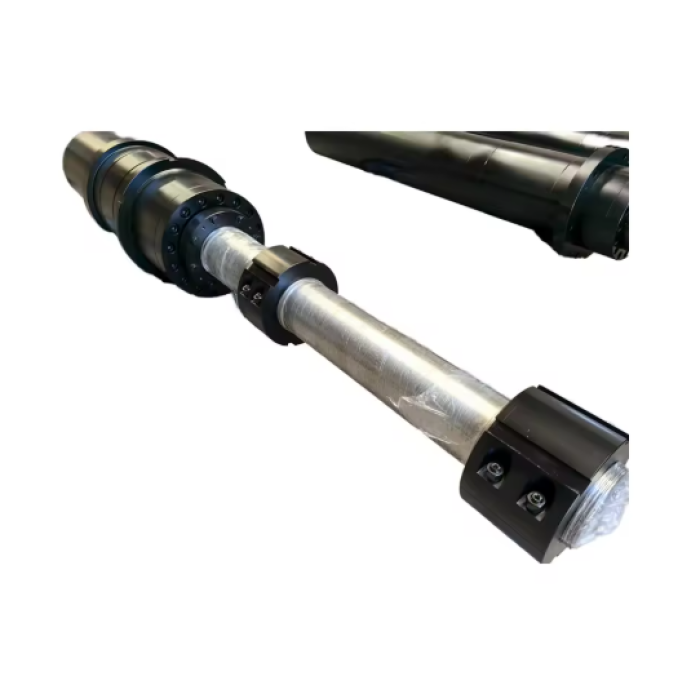

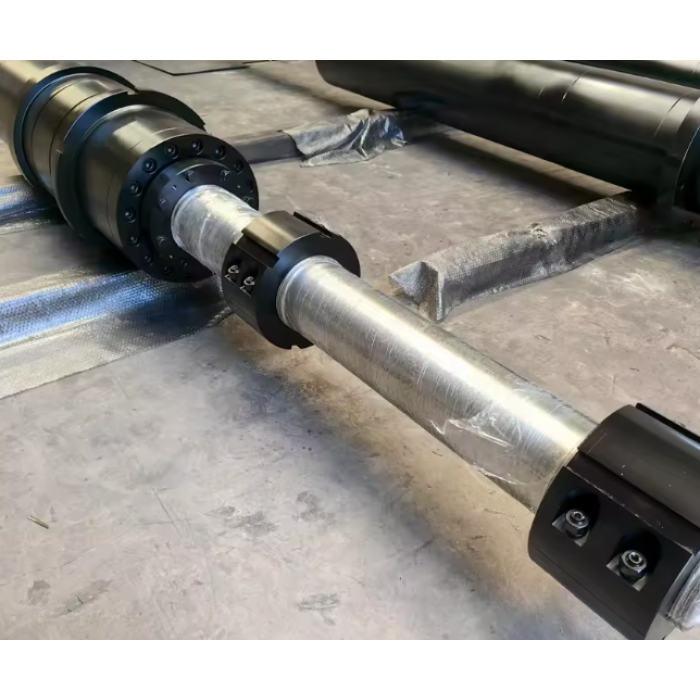

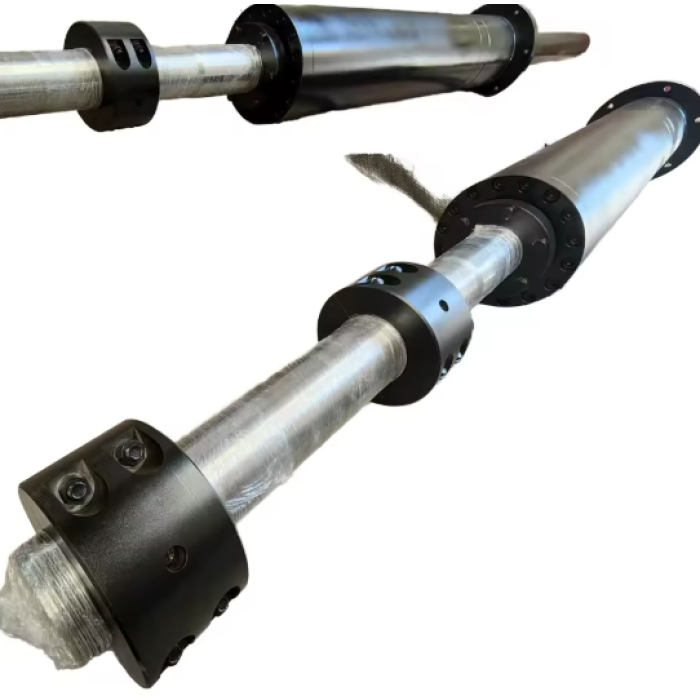

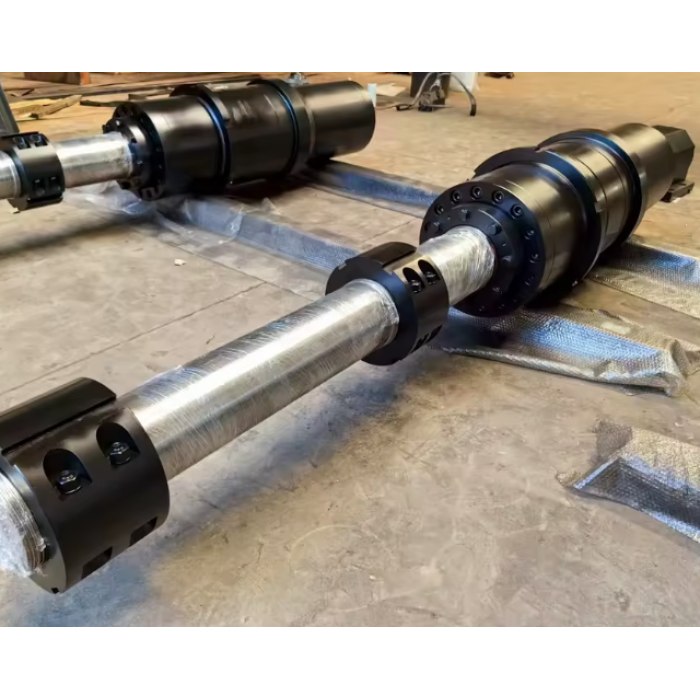

Birta culus ee birta ah ee bistoonka ah 75 Tons Force

Dhululubada Haydarooliga loo isticmaalo qodista tunnel-ka

1.Sharaxaada ugu weyn

Shirkadda ETERNAL waxay nashqadaysaa oo ay soo saartaa dhululubo-biyoodyo culus oo loo isticmaalo qodista tunnel-ka.

2. Naqshadeynta

Ma aha oo kaliya inaan soo saari karno dhammaan noocyada kala duwan ee dhululubada haydarooliga sida ku cad sawirkayaga

macaamiisha, laakiin sidoo kale waxaan samayn karnaa naqshad waafaqsan shuruudaha macaamiisha. Haddii aad

u baahan injineerkeena inuu sameeyo naqshad, pls nagula tali tilmaamahan soo socda:

1. Cadaadis la qiimeeyay

2. Cadaadiska shaqada

3. Cadaadiska tijaabi

4. Xaaladda shaqada iyo deegaanka, tusaale ahaan, heerkulka, inta jeer ee shaqada

5. Xoog jiid, oo soo celi xoogga istaroogga

6. Xawaaraha jiidista iyo soo celinta

3.Wax soo saarka iyo kormeerka

3.1. Cabbirka tuubada Silinder iyo doorashada

3.1.1 Marka loo eego cadaadiska dhululubada iyo cabbirka dhexroorka, tuubo bir ah oo kala duwan ayaa la dooran doonaa.

Aqoonsi ≤300mm, tuubo saxan oo tayo sare leh ayaa la dooran doonaa

3.1.2 tube Silinder darajada birta: SAE1020, SAE1045,27SiMn,

3.1.3 Tuubbada Silinder gudaha caajis iyo honing, qallafsanaan R0.2-R0.3,

3.1.4 tube silinder gudaha chromating: haddii loo baahdo, tube gudaha chromating waa la marsiin karaa

3.2 Usha piston waa qayb aad muhiim u ah dhululubo

3.2.1 Piston ushii birta darajada: SAE1045, 42CrMo4,

3.2.2 Birta biistan oo chromating iyo adkaanta dusha sare.

Shirkadda daa'imka ah waxay hubisaa in ul kasta oo piston ah uu noqon doono mid adag ka hor inta aan la chromating,

adkaanta dusha sare waa HRC55 ~ 60, dhumucda filimka Chromating waa 0.03 ~ 0.04mm haddii aysan jirin wax kale oo gaar ah

shuruudaha .

3.3 Dabool faraantiga iyo giraanta O

Marka loo eego shuruudaha macaamiisha iyo xaaladda shaqada, shirkadda weligeed ah ayaa dooran doonta ku habboon

Qalabka giraanta shaabadda, astaanta giraanta shaabadda waxaa ka mid ah: Parker, Merkel, NOK, Machadka Rubber Guangzhou, astaanta Taiwan iwm. Shirkadda daa'imka ah waxay siin doontaa macaamiishooda xal shaabad ku habboon si dhululubada hawo-mareenku u yeesho wax badan

nolosha , dayactir fudud iyo dayactir fudud .

3.4 Tube iyo alxanka flange

Alxanka tuubada dhululubada iyo flange waxaa lagu tijaabin doonaa Ultrasonic mar kasta, tollaynta alxanka ayaa noqon doonta

la nadiifiyo ka hor inta aan la samayn mishiin .Shirkadda weligeed ah waxay hubisaa in tol kasta oo alxanka ahi aanu lahayn wax dareere ah inta lagu jiro nolosha

3.5 Golaha iyo tijaabada cadaadiska

Ka hor inta aan la isku dhejin dhululubada hydraulic , qayb kasta oo dheeri ah ayaa la cabbiri lahaa oo la nadiifin lahaa .

dhululubo waa la isku duba riday , tijaabada cadaadiska waxaa la qaadi doonaa hal Hal , shirkadda weligeed ah waxay hubisaa in tijaabada

Cadaadisku wuxuu ka sarreeyaa 30% -50% marka loo eego cadaadiska shaqada, iyo cadaadiska cadaadiska 3 ~ 6 daqiiqo waa lagama maarmaan. Jeex kasta oo dhululubo haydarooliga ah waa in si buuxda loo tijaabiyaa iyada oo aan wax daloolin .

3.6 Rinjiyeynta iyo kaydinta .

Ka dib markii dhululubada hadhidarooliga ka gudubto tijaabada cadaadiska , rinjiyeynta waa lagama maarmaan .

4. Kuwa soo socda waa jaantuska hab-socodka wax-soo-saarka , haddii aad hayso codsi kale, fadlan nala soo xidhiidh .
